Expanding possibilities

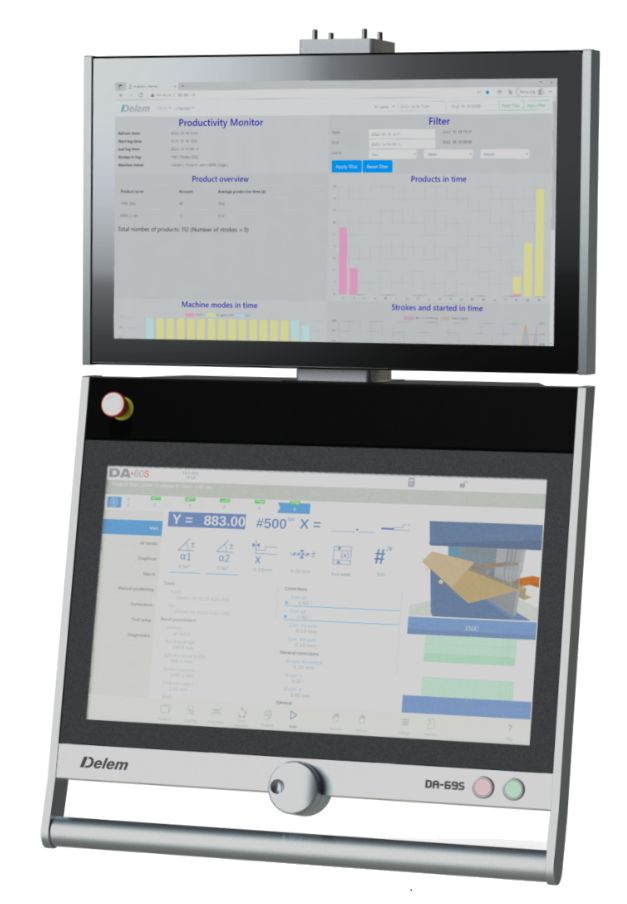

The DD-60S 2nd display for the DA-60S press brake control expands its solution with the ability to integrate additional software applications as well as it can expand the control GUI. Using ERP systems at the machine, enables the operator to see production plans, know his activity schedule and also update activities directly in the system. Next to reference lookup in e.g. PDF or even CAD/CAM systems, understanding details on the job at hand, make efficiency increase. No separate workstations near the machine and no last minute calls to preparation in order to have all set for the main task, produce the part.

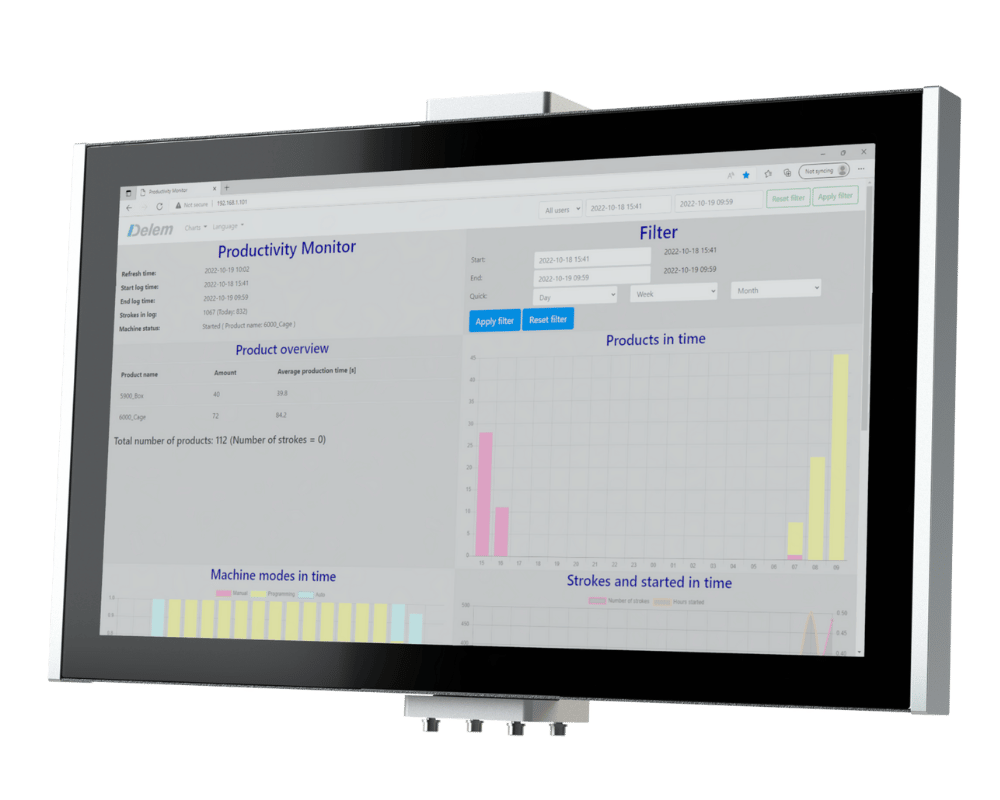

The DD-60S 2nd display is a full functional 1920 x 1200 touchscreen solution which can be connected to both PC (connected to the company LAN) as well as to the DA-60S press brake control.
Neat functionality is provided with the automatically switching function over the DA-60S user interface. If installed and applicable, the DD-60S can be switched from PC to control and vice versa. The USB ports connecting the keyboard, mouse and touchscreen, will be automatically appointed the active function.
The display can also be used solely for the computer functionality at the machine.
Integration
Interfacing for machine integration with a diversity of partnering systems in the application.
No compromise
Machine functions and integration of partner systems, not compromising compatibility and performance.
User-friendly
Delem touch navigation offers proven user friendliness and consistency ensuring highest possible efficiency.
Networking
Working online, with office and machines, increases availability and prevents mismatches. One source, one product.
Features
- 24″ high resolution colour TFT
- Industrial grade touch screen functionality
- HDMI interfacing
- Proprietary switch function from CNC
- USB, peripheral interfacing, automatically switching 2x USB, switching with source 1x USB, direct
Technical data
| DD-60S | |
|---|---|
| Standard | |
| Display | Color LCD display |
| Type | 24″ TFT, high brightness |
| Resolution | 1920 x 1080 pixels, 32 bit colour |
| Touch sensor | Industrial PCT touch screen control |
| Backlight | LED |
