Shear comfort at your fingertips
Versatile shear control solution offering broad functionality

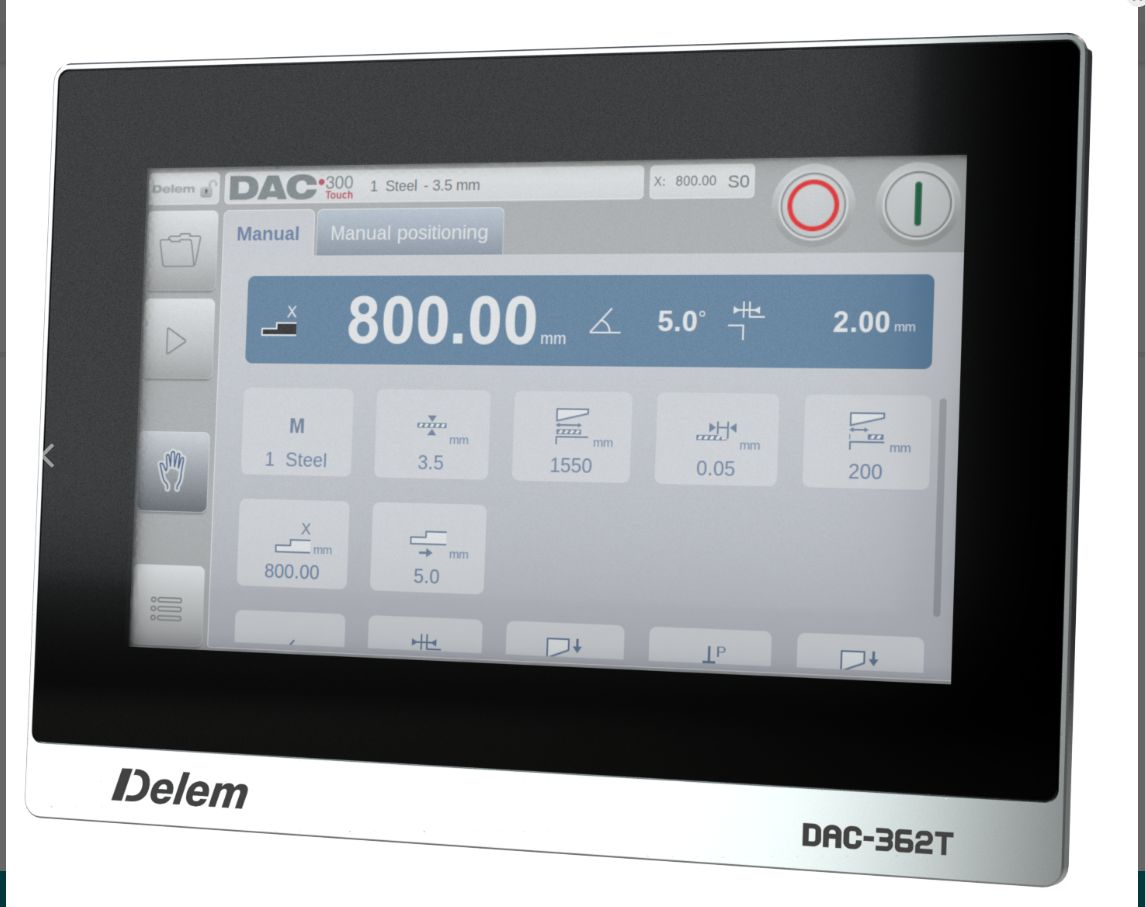

The DAC-360Tx control provides a user-friendly and versatile touch control solution for shears. Upon demand multiple back gauge axes, cutting angle, stroke length and gap can be controlled, based on state-of-the-art electronics. Next to back gauge control, the DAC-360Tx automatically calculates the required setting for the cutting angle and gap depending on material properties and thickness. The stroke length is optimized based on the required cutting length, thus increasing productivity.
The back gauge control supports servo control, 2-speed AC control as well as inverter control. Depending on the application you can select either two-side positioning or single side positioning, using optional spindle correction functionality. The DAC-362T supports dual and triple gauge axes control, offering control for extra gauges and related functionality.
Full force control for clamping and cutting is available in the DAC-360T. With its easy to use touch screen navigation on the bright LCD screen, operation is most user-friendly. The numerical programming with clear icons guides the operator through all programming functionalities.
Cut easy
Powerful as a tool can be, operating machines is made even easier, cuttting both material and cost.
Operator friendly
Confidence for operators increasing productivity. Finding functions easily, offering cutting at its best.
Robust
Strong and sturdy as the machine it is controlling, reliable solutions. Control and machine are one.
State-of-the-art
New technologies enabling highest accuracies, enhancing functions and user friendliness at a whole new level.
Features
- Panel based housing
- Bright LCD screen
- Back / front gauge control
- Retract function
- Cutting angle and gap control
- Stroke length limitation
- Manual movement of all axes
- Force control
- Sheet thickness measurement
- Return to Sender function
- Second and third servo axis (DAC-362T)
- Sheet support
Technical data
| DAC-360Tx / DAC-362Tx | |
|---|---|
| Standard | |
| Display | Colour LCD display |
| Type | 10.1″ widescreen TFT, high brightness |
| Backlight | LED |
| Resolution | 1024 x 600 pixels, 32 bit colour |
| Touch sensor | Full touch screen control (PCT-touch) |
| Storage capacity | Program memory for 100 programs |
| Program steps | 25 steps per program |
| Housing | Panel version |
| Exchangeable memory | USB flash memory drive |
Options | |
| Version | DAC-360Tx, compact touch shear control |
| Expanded version | DAC-362Tx, multi axes compact touch shear control |
| Offline Software | Profile-360Tx / Profile-362Tx |
