Everything under control

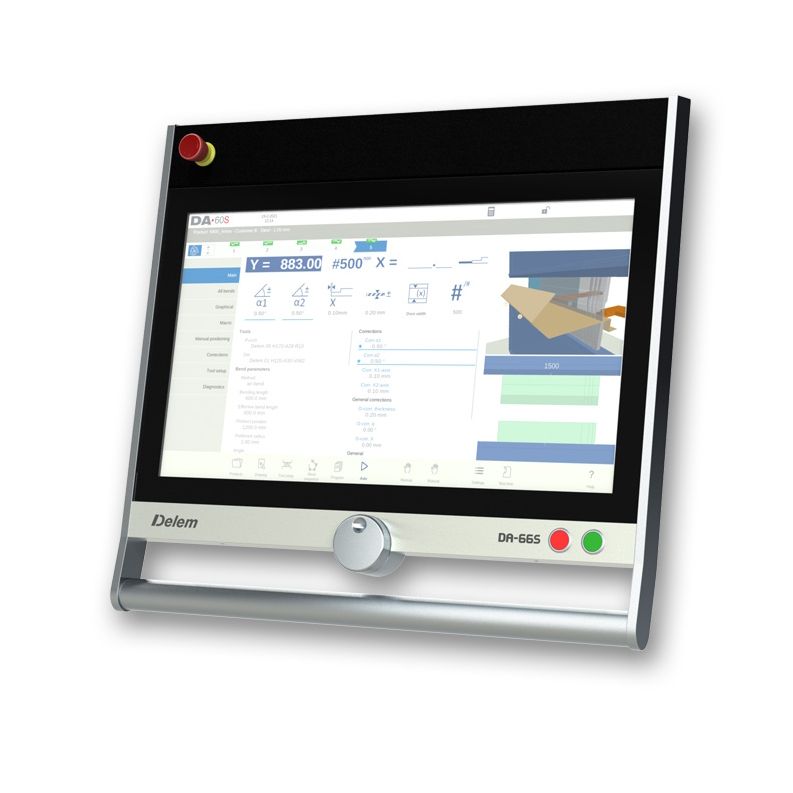

The DA-66S control combines solid fundamental press brake control functionality with the latest of enhancements increasing productivity. Next to highest accuracies, ease-of-use for the operator it makes today’s press brakes more versatile than ever. Integration of machines in the manufacturing process chain is what it is all about.
The control operation, based on state-of-the-art industrial touch screen technology, gives access to the proven renewed Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimized ergonomics throughout the application.
The DA-66S offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. Abive the screen a panel is reserved for machine functions and OEM-application switches, integrated in the design and used depending on the required application.
Integration
Interfacing for machine integration with a diversity of partnering systems in the application.
Modular
Compatible with the Modusys system, the solution is scalable upon the needs for the application.
Accurate
Solutions that assure highest possible accuracy is met. Accuracy that helps increasing productivity.
User-friendly
Delem touch navigation offers proven user friendliness and consistency ensuring highest possible efficiency.
Features
- 2D graphical touch screen programming mode
- 3D machine representation, in simulation and production
- 24″ high resolution color TFT
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control’s multitasking environment
- Sensor bending & correction interface
- Profile-S2D offline software
Technical data
| DA-66S | |
|---|---|
| Standard | |
| Display | Color LCD display |
| Type | 24″ TFT, high brightness |
| Resolution | 1920 x 1080 pixels, 32 bit colour |
| Touch sensor | Industrial PCT touch screen control |
| Backlight | LED |
| Storage capacity | 4 GB |
| Product and tools memory | 3 GB |
| Characteristics | 3D graphics acceleration |
| Networking | Standard Windows® networking |
| Safety system | Emergency switch |
| OEM machine functions | Integrated OEM-panel |
| Exchangeable memory | USB flash memory drive |
| Offline software | Profile-S2D |
Options | |
| Bending aids | Part support control |
| Backgauge programming | X1-X2 angle programming |
| Program selection | Barcode reader interfacing |
| Correction aids | Protractor interfacing |
| Advanced deflection systems | Frame deflection compensation |
| Sensor bending | Sensor bending & correction interfacing |
| Thickness measurement | Sheet thickness measurement and compensation system |
| Tandem capability | TandemLink |
| Bus expansion | 2nd HSB Modusys bus |
