Fit for the purpose 2D graphical
Graphical programming, compact CNC
The new DA-58Tx touch CNC control provides a modern compact and versatile solution for powerful economic press brake applications.
This control with extra large screen adds a state of the art complete 2D graphical solution for synchronized press brakes to the DA-50T series.

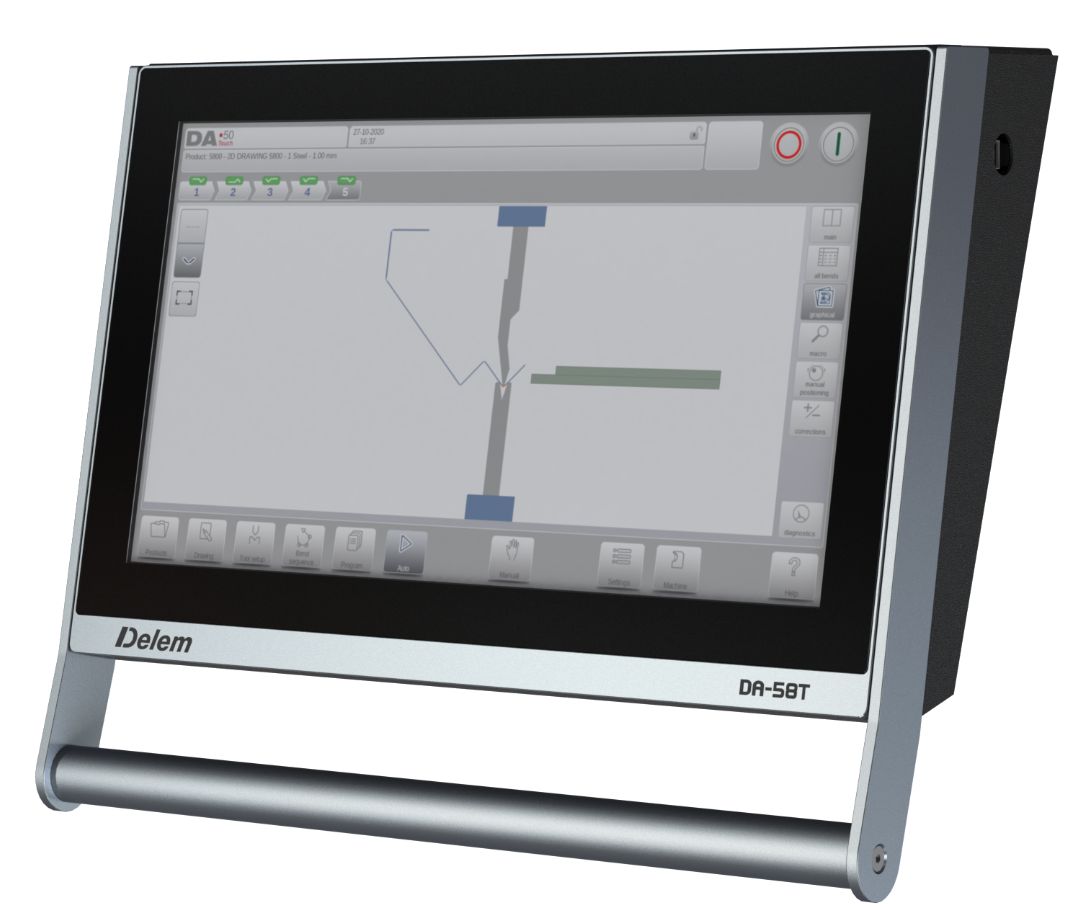

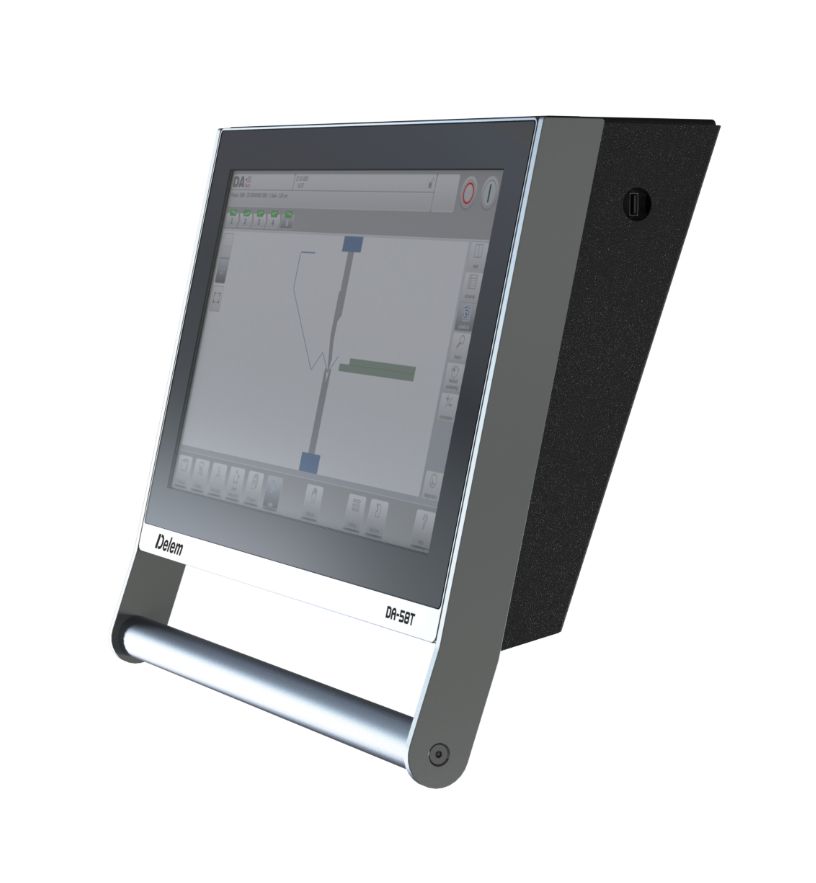

The DA-58Tx, standard capable of controlling up to 4 axes, is housed in a stylish pendulant arm cabinet. Its 18,5″ wide screen high resolution color TFT, with industrial grade multi touch technology, gives access to the user friendly Delem user-interface. It enables direct “hot-key” touch navigation between product programming and actual production.
Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence. CNC programs can be generated with a single touch, immediately ready to make the first part. Axes positions are automatically computed and the bend sequence can be been simulated with machine and tools in real scale.
The DA-58Tx offers 2D programming including automatic bend sequence calculation and collision detection. The production mode of the DA-58T helps the operator in graphically simulating the bend process of the product, guiding him during the press brake operation.
Compact
Fit for the purpose, enabling lean machine design with all important functionality directly at hand.
Easy-to-use
Delem touch navigation offers proven user friendliness and consistency ensuring user-efficiency.
Productive
Excellent machine behavior enabling smooth and fast bending at highest reliability.
No compromise
Machine functions and integration of partner systems, not compromising compatibility and performance.
Features
- 2D graphical touch screen programming
- 18,5″ high resolution color TFT
- Bend sequence calculation
- Crowning control
- Servo and frequency inverter control
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- USB, peripheral interfacing
- Profile-T offline software
Technical data
| DA-58Tx | |
|---|---|
| Standard | |
| Display | Color LCD display |
| Type | 18.5″ TFT, high brightness |
| Resolution | 1366 x 768 pixels, 32 bit colour |
| Touch sensor | Full touch screen control (PCT-touch) |
| Backlight | LED |
| Storage capacity | 1 GB |
| Product and tools memory | 256MB |
| Exchangeable memory | USB flash memory drive |
| Offline software | Profile-58TL |
| Options | |
| Networking | Standard Windows® networking |
| Tandem capability | TandemLink |
| Correction aids | Protractor interfacing |
